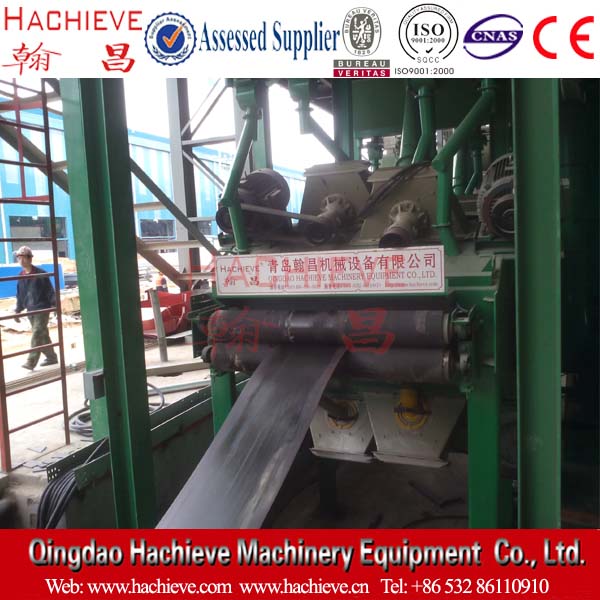

The Hachieve belt steel shot blasting machine，as the ideal belt steel shot blasting and cleaning system,
successfully applied to hot rolled stainless steel strip (chromium - nickel - titanium alloy steel) and silicon steel belt mechanical cleaning, has been effective in combination with annealing, cooling, and mechanical cleaning, processing production line.
As the ideal system, has the following advantages
Reliable, economic operation. And achieve high surface cleanliness.
Suitable for the requirements of environmental protection of shot blast cleaning. Reducing harmful acid dosage.
The maximum efficiency of the installed power, ensure continuous, efficient shot blast cleaning efficiency and consistent shot blasting effect. Surface cleanliness of steel after shot blasting (about Sa2~2.5)
According to the different type shot blasting machine, make adjust for the blast quantity ,shot blast speed,the compat width , adapted to the change of strip width and surface quality of different grades.
Module arranged in a series of blast chamber can meet the special requirements of surface cleaning.
Composed of a fully functional module, can be installed on the ground.
Steel Plate and Profile Pretreatment Line is a highly integrated system of machinery and electric automation. To guarantee the advancement and reliability, we will adopt the following key know-how and guaranteeing measures:
1.Stainless steel coil & carbon steel coil shot blasting machine techincal data:
|
Item
|
HC-4/600
|
HC-4/1600
|
HC-4/2100
|
|
Max width of the steel band ( mm)
|
600
|
600-1600
|
800-2100
|
|
Blast wheel QTY
|
4
|
4
|
4
|
|
Each blast wheel power
|
45
|
90
|
90
|
|
Max folw rate of each blast wheel (kg/min)
|
600
|
1200
|
1200
|
|
Power (KW)
|
230
|
480
|
480
|
|
Running speed (m/min)
|
20
|
20
|
15
|
We can do all kind of shot blasitng machine according customer's need!
Technical parameter
|
strip steel shot blasting machine
|
HC-4/600
|
HC-4/1600
|
HC-4/2100
|
|
The max steel strip width / mm
|
600
|
600-1600
|
800-2100
|
|
Blast wheel quantity
Blast Wheel power
the max quantity of shot blasting Kg/Min
|
4
45
600
|
4
90
1200
|
4
90
1200
|
|
Power KW
|
230
|
480
|
480
|
|
The cleaning speed m/min
|
20
|
20
|
15
|
